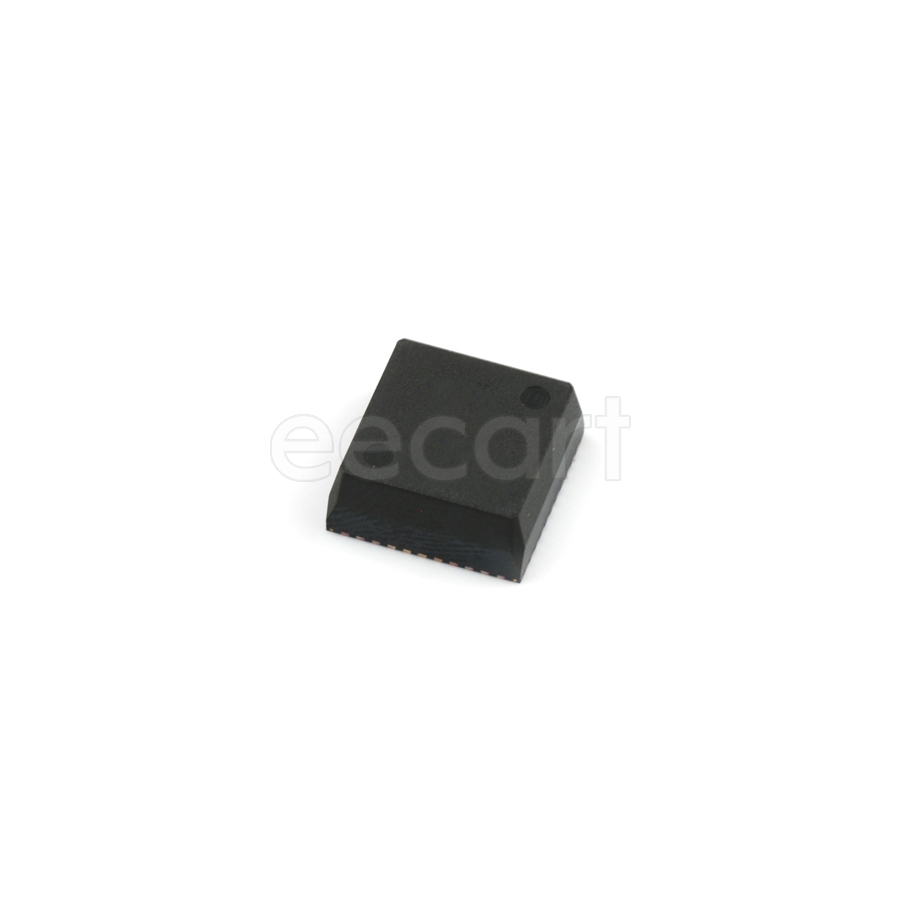

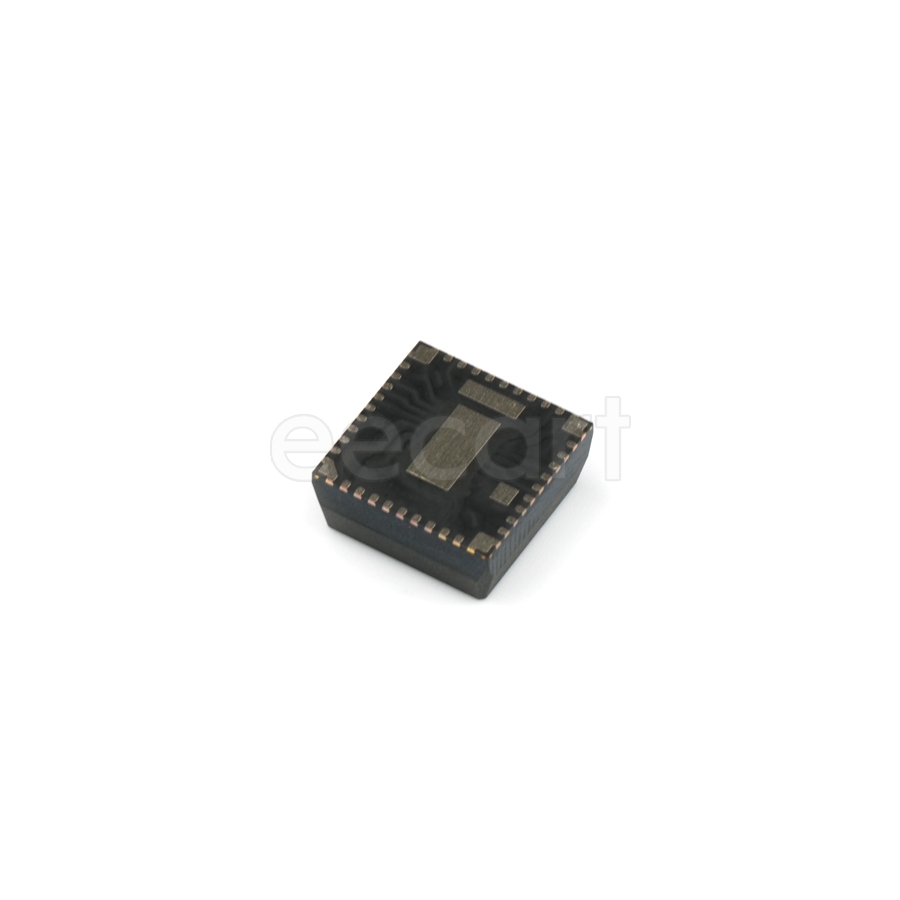

LMZ34202RVQT
Manufacturer:
Texas Instruments
Mfr.Part #:
LMZ34202RVQT
Datasheet:
Description:
Voltage Regulators - Switching B3QFN-43 SMD/SMT Buck 7.5 V
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 10 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 43 |
| Height | 0 mm |
| Packaging | Reel |
| Thickness | 4.3 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | OCP, OTP, UVLO |
| Min Input Voltage | 4.5 V |
| Output Current | 2 A |
| Output Voltage | 7.5 V |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 42 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 2 A |
| Ambient Temperature Range High | 105 °C |
| Topology | Buck |
| Max Input Voltage | 42 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 600 µA |
| Efficiency | 92 % |
| Voltage - Output 1 | 7.5 V |
| Max Junction Temperature (Tj) | 125 °C |
| Max Duty Cycle | 90 % |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Switching Frequency | 200 kHz to 1 MHz |
| Quiescent Current | 1.3 µA |
Stock: 23
Distributors
pcbx
pcbxUnit Price$8.41162
Ext.Price$8.41162
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.41162 | $8.41162 |
| 10 | $7.16784 | $71.67840 |
| 25 | $6.69191 | $167.29775 |
| 50 | $6.24758 | $312.37900 |
| 100 | $5.83280 | $583.28000 |
